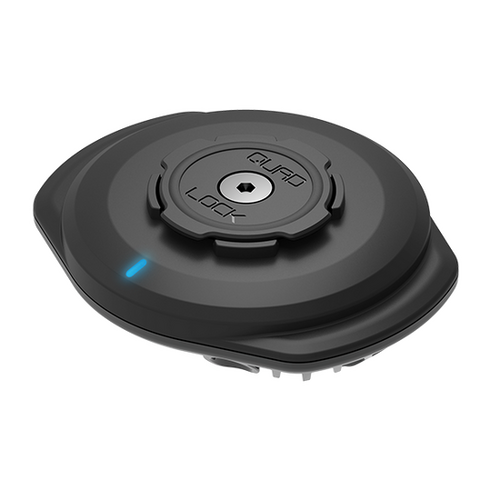

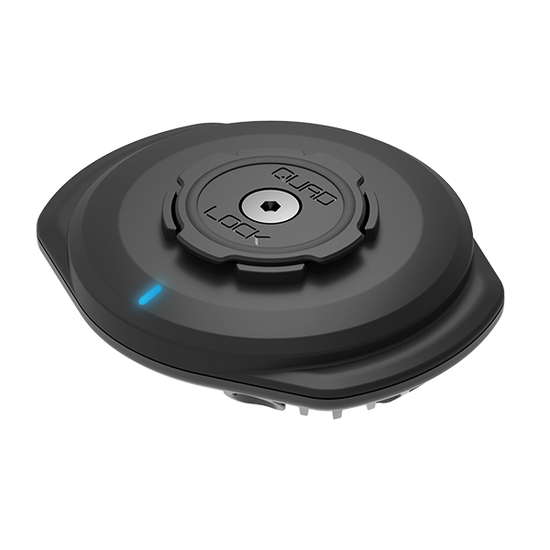

QUAD LOCK WEATHERPROOF WIRELESS CHARGING HEAD

** Power Source Required **

Compatible with all Quad Lock® Motorcycle Mounts and the Quad Lock® Waterproof 12V to USB Smart Adaptor.

FAST CHARGING CAPABILITY

• Easily use GPS navigation without draining your smartphone's battery. The wireless charging heads supports fast charging when coupled with adequate power supply.

*Power supply requirements may vary depending on phone brand and model.

SECURE MOUNTING

• The dual stage lock means you can ride with confidence as your smartphone is securely mounted to your motorcycle while it charges.

IP66 WATER RESISTANT

• Rain happens. So the Quad Lock® Weatherproof Wireless Charging Head is IP66 Water Resistant, allowing you to ride through the elements.

EASY INSTALLATION

• The Quad Lock® Weatherproof Wireless Charging Head comes with everything needed to install with your Quad Lock® Motorcycle Mount (sold separately).
• USB-A to USB-C cables are inluded to charge directly from your bike's USB power source if available.
• For motorbikes without a USB power source, the Quad Lock® Weatherproof 12V to USB Smart Adaptor connects to your motorbike's battery or existing SAE connector, providing a simple power source solution (sold separately).

LED LIGHTS

• The Weatherproof Wireless Charging Head comes with an LED light to indicate the level of power your device is receiving. See diagram for further explanation.

WIRELESS CHARGING HEAD COMPATIBILITY:

• iPhone 14 Pro, 14 Pro Max, 14, 14 Plus, 13 Pro, 13 Pro Max, 13, 13 mini, SE (3rd Gen), 12 Pro, 12 Pro Max, 12, 12 mini, 11 Pro, 11 Pro Max, 11, SE (2nd Gen), X/Xs, Xs Max, XR, 8 Plus, 8
• Samsung Galaxy S23 Ultra, S23+, S23, S22 Ultra, S22+, S22, S21 FE, S21 Ultra, S21+, S21, Note20 Ultra, Note20, S20 FE, S20 Ultra, S20+, S20, Note10, Note10+, Note9, S10+, S10, S10e, S9+, S9, S8+ and S8
• Google Pixel 7 Pro, 7, 6 Pro, 6, 5, 4, 4 XL, 3, 3 XL
• Huawei P40 Pro and P30 Pro

WHAT'S IN THE BOX

• 1 x Quad Lock® Weatherproof Wireless Charging Head
• 1 x 50cm (20") USB-C to USB A Cable
• 1 x 1.5m (59") USB-C to USB-A Cable
• 1 x 1.2m (47") Right-Angle USB-C to USB-A Cable
• 1 x 3mm Hex Key
• 1 x M5x35 CSK Screw
• 5 x Nylon Zip Ties

TECH SPECS

• Dual stage lock
• Built from a combination of die cast aluminium and reinforced plastics
• 5W, 7.5W & 10W charging (iPhone up to 7.5W)
• IP66 Water Resistant
• Minimum recommended input from 5V/2A USB-A port
• LED light for status indication
• Portrait or Landscape mounting for optimal viewing
• Aluminium rear housing to dissipate heat
• CE/FCC certified
• On/Off button to power device

The Wireless Charging Head is not compatible with the Universal Adaptor
