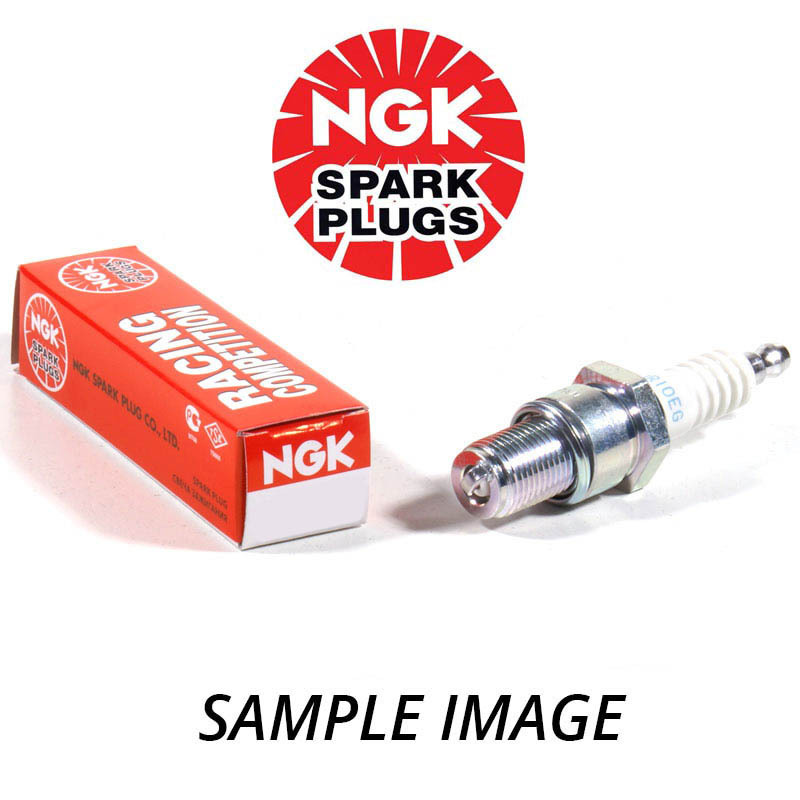

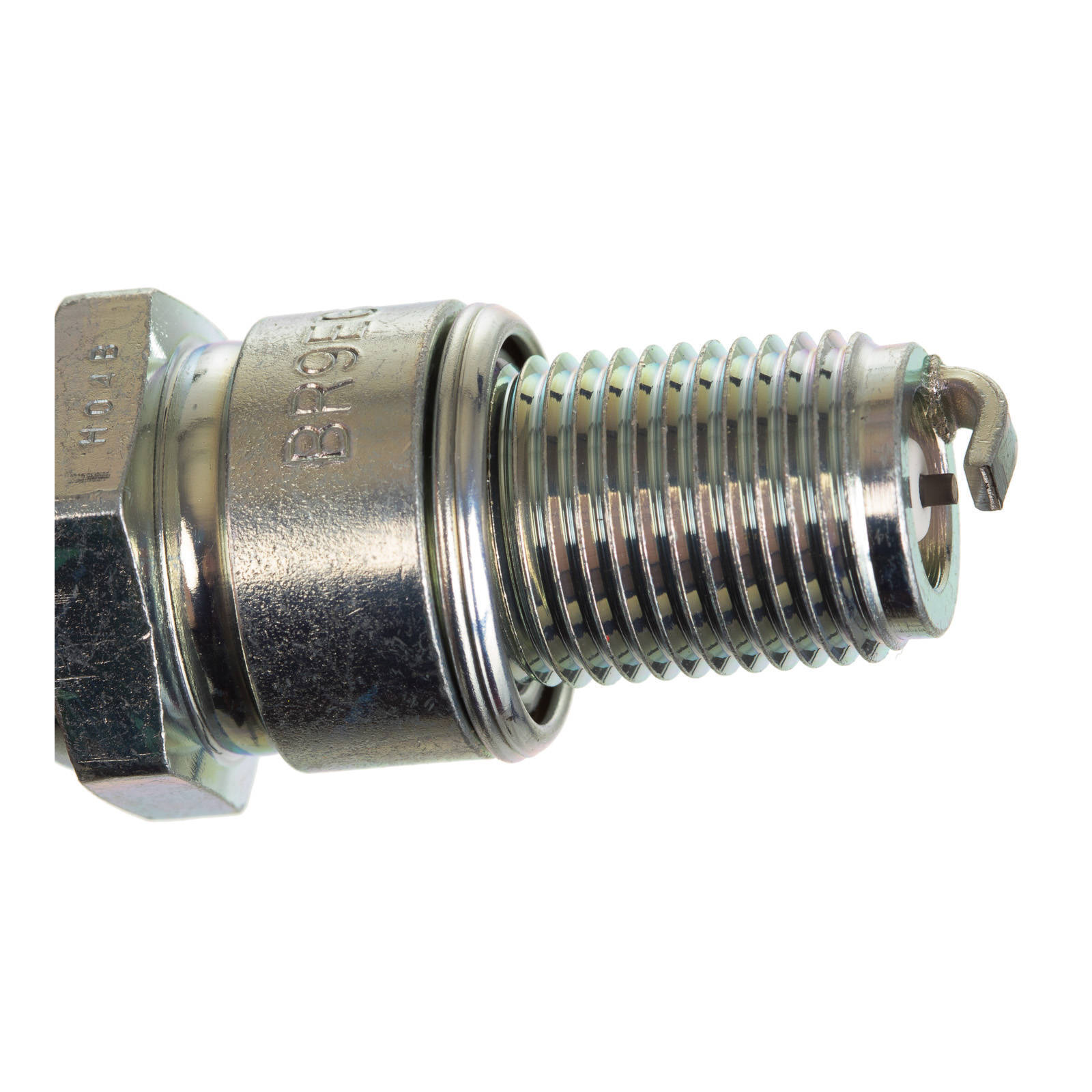

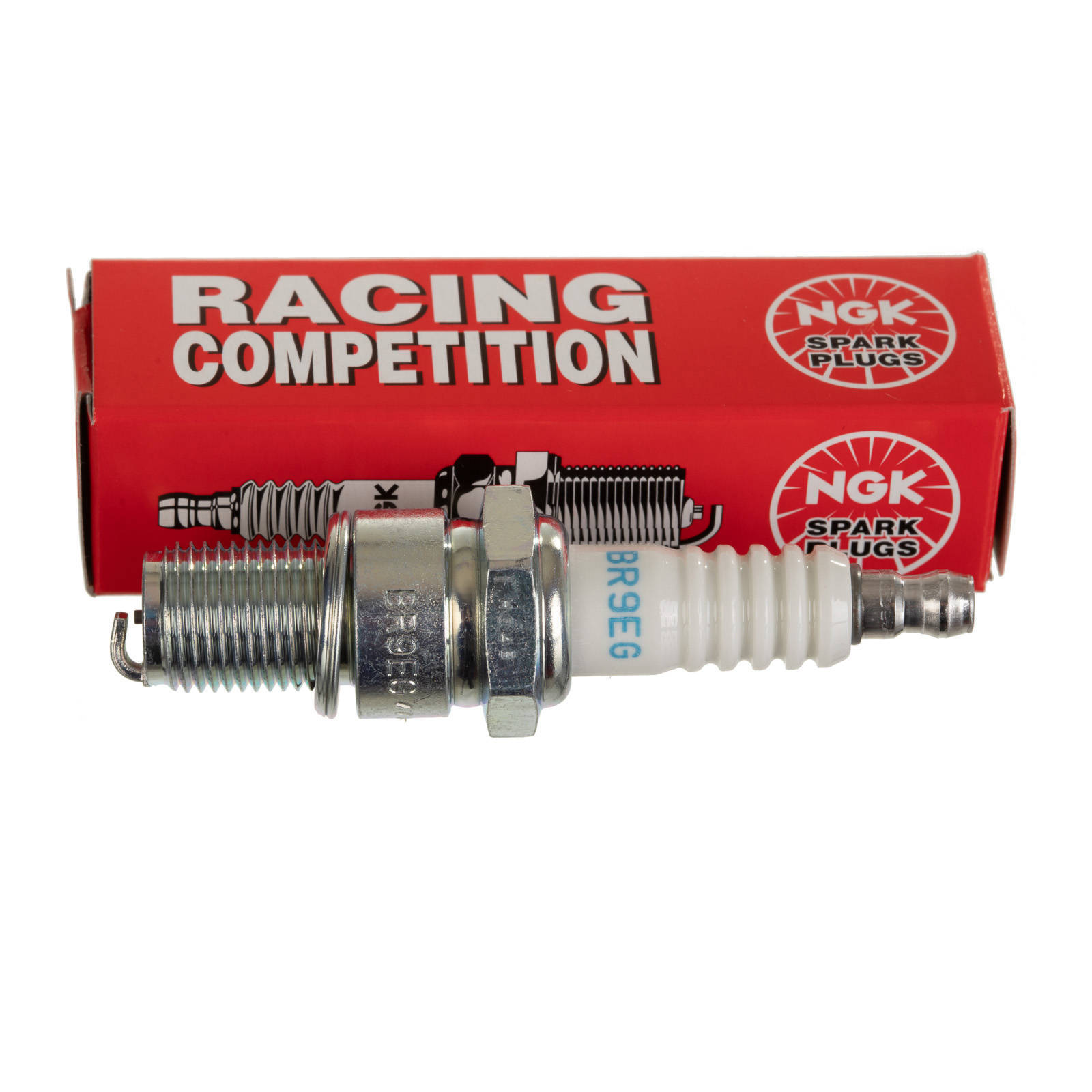

NGK SPARK PLUG - BR9EG
NGK have over 80 years of experience in spark plug manufacturing and arethe world leader in spark plug technology. NGK has an extensive range ofspark plugs each with their own unique characteristics specificallyengineered to its application and designed to suit a broad range ofmotorcycles ATVs & UTVs in Australasia. With NGK's dedication toquality outstanding reliability and state of the art manufacturingtechniques you can rely on your NGK Spark Plugs.
Don’t justask for a spark plug insist on NGK.
Spark plugs used for racing mustwithstand especially hard stresses. The speeds during a race are frequentlyin excess of 10 000 rpm. Temperature pressure and vibrations in thecombustion chamber are so immense that conventional ground electrodes couldbreak or melt. For this reason racing spark plugs often come withspecially designed ground electrodes the most extreme form with aring-shaped ground electrode. The spark jumps from the middle electrode tothe ring-shaped groundelectrode.
Shell
- Thread Size:14mm
- Thread Pitch: 1.25mm
- Seat Type:Gasket
- Resistor Value: 5K Ohm
- Reach: 19mm(3/4 )
- Hex Size: 21mm (13/16 )
- Terminal Type: RemovableNut
- Overall Height: ISO
- Gap: 0.6mm(0.024 )
CentreElectrode
- Material: Nickel
- Type: FineWire
- Size: 1.3mm
- Projection:Non-Projected
GroundElectrode
- Material: Nickel
- Type:Standard
- Quantity:1
Specifications
- HeatRange: 9
- Resistor: Yes
(NGKBR9EG)
SKU | NGKBR9EG |
Barcode # | 2000000072036 |
Brand | NGK |
