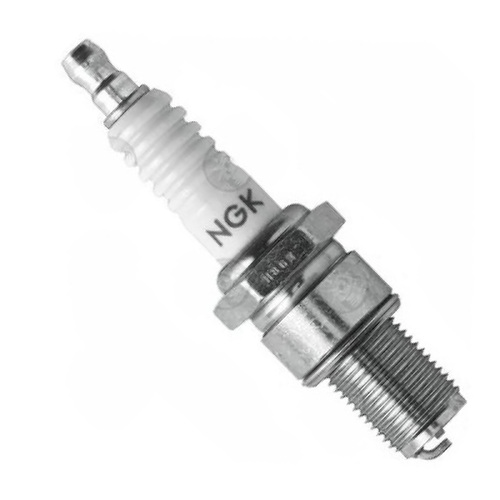

NGK SPARK PLUG - B9EG
NGK have over 80 years of experience in spark plug manufacturing and arethe world leader in spark plug technology. NGK has an extensive range ofspark plugs each with their own unique characteristics specificallyengineered to its application and designed to suit a broad range ofmotorcycles ATVs & UTVs in Australasia. With NGK's dedication toquality outstanding reliability and state of the art manufacturingtechniques you can rely on your NGK Spark Plugs.
Don’t justask for a spark plug insist on NGK.
Spark plugs used for racingmust withstand especially hard stresses. The speeds during a race arefrequently in excess of 10 000 rpm. Temperature pressure and vibrationsin the combustion chamber are so immense that conventional groundelectrodes could break or melt. For this reason racing spark plugs oftencome with specially designed ground electrodes the most extreme form witha ring-shaped ground electrode. The spark jumps from the middle electrodeto the ring-shaped groundelectrode.
Shell
- Thread Size:14mm
- Thread Pitch: 1.25mm
- Seat Type:Gasket
- Reach: 19mm (3/4 )
- Hex Size: 21mm(13/16 )
- Terminal Type: Removable Nut
- OverallHeight: ISO
- Gap: 0.6mm(0.024 )
CentreElectrode
- Material:Nickel
- Type: Fine Wire
- Size:1.3mm
- Projection: Non-Projected
GroundElectrode
- Material: Nickel
- Type:Standard
- Quantity:1
Specifications
- HeatRange: 9
- Resistor: No
(NGKB9EG)
SKU | NGKB9EG |
Barcode # | 2000000071923 |
Brand | NGK |
