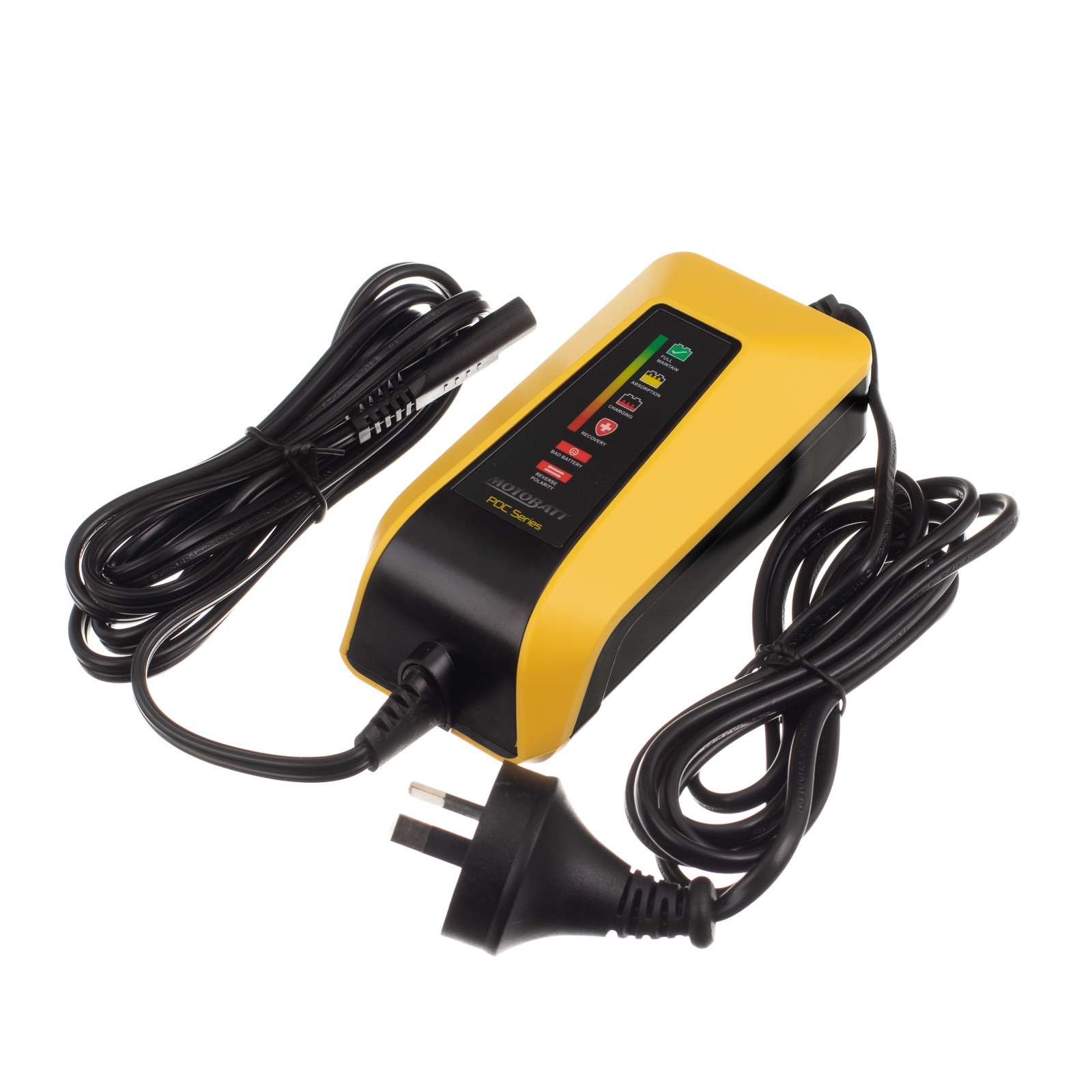

MOTOBATT WATER BOY 9 STAGE 12V 1.0A PDC CHARGER

Founded in 2008 Motobatt is a manufacturer of premium Powersports batteries battery chargers and battery related accessories. Motobatt is the creator andholds patents all over the world for the Motobatt 4 terminal battery thatfacilitates flexible battery installation across a wide variety of vehicleswhile maintaining an OE like fit.

Features:

• Waterproof perfect for outdoors
• 9 Step Algorithm
• Automatic Charging & Maintaining
• Overcharge Protection
• Reverse Polarity Protection
• Short Circuit Protection
• Spark Proof
• Maintains Full Charge

Specifications:

• Application: 12V AGM Lead-Acid Calcium & Gel Batteries
• Input: Auto-switching 120-240VAC 50/60 Hz
• Input Cable: 6' 18AWG U.S. SPT-2 EU-H03VV Aust/NZ-H03VV
• Output: 12VDC 1A
• Max Charge Current: 1A
• Max Voltage: 14.8V
• Battery Capacity: 2-33Ah (Charging) up to 80Ah (Maintenance)

Motobatt chargers utilise Motobatt’s unique 9 Stage Charging andMaintenance Process.

Qualification Phase:

Initially ensures that the battery is in good condition prior to launchingcharge processing. As a safety measure charge process will not begin if thebattery is below 2V.

Battery Rescue Phase:

Motobatt Battery Rescue starts if the battery voltage has risen unusuallyhigh in the early portion of the re-charge cycle. This is usually caused byplate sulfation. Once the battery rescue phase has succeeded in getting thebattery to accept power normal battery charging will begin.

Soft Start Phase:

Soft Start is used when the charger has detected a battery at a very lowinitial state of charge. Voltage and current are delivered at specified rates tohelp the battery to recover prior to entering Pulse charge mode.

Pulse Mode Phase:

(MBZCHPDCWB)
