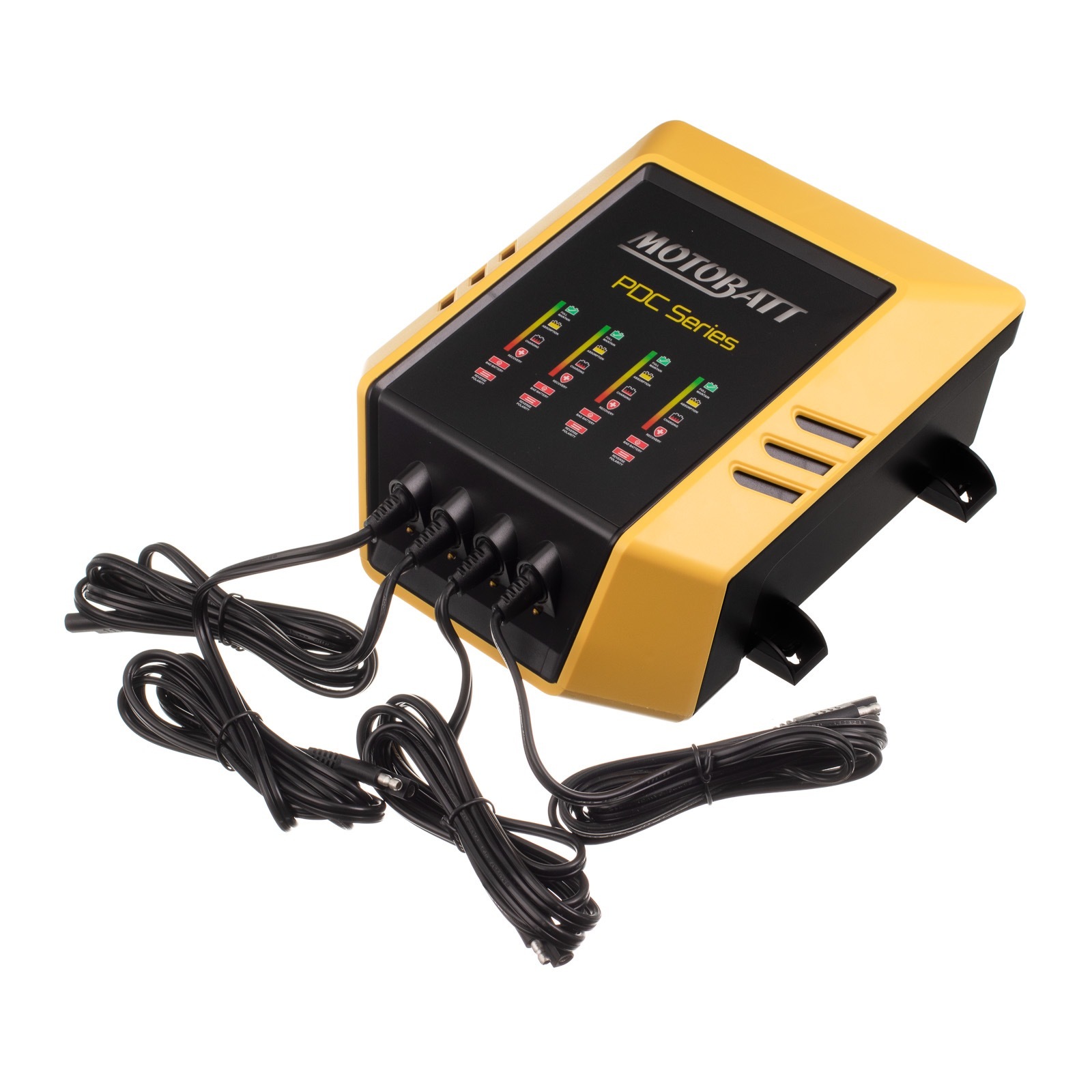

MOTOBATT 4 BANK 9 STAGE 2.0A PDC QUAD BATTERY CHARGER

Founded in 2008 Motobatt is a manufacturer of premium Powersports batteries battery chargers and battery related accessories. Motobatt is the creator andholds patents all over the world for the Motobatt 4 terminal battery thatfacilitates flexible battery installation across a wide variety of vehicleswhile maintaining an OE like fit.

Features:

• Charges 4 batteries simultaneously
• 9 Step Algorithm
• Automatic Charging & Maintaining
• Overcharge Protection
• Reverse Polarity Protection
• Short Circuit Protection
• Spark Proof
• Enables ongoing battery maintenance
• Prevents battery sulfation
• Temperature compensated
• 72-hour safety timer

Specifications:

• Application: 12V AGM Lead-Acid Calcium & Gel Batteries (NOT Compatable with Lithuim Batteries)
• Input: Auto-switching 120-240VAC 50/60 Hz
• Output: 12VDC 4A per channel
• Max Charge Current: 4A
• Max Voltage: 14.9V
• Battery Capacity: 4-100Ah

Motobatt chargers utilise Motobatt’s unique 9 Stage Charging andMaintenance Process.

Qualification Phase:

Initially ensures that the battery is in good condition prior to launchingcharge processing. As a safety measure charge process will not begin if thebattery is below 2V.

Battery Rescue Phase:

Motobatt Battery Rescue starts if the battery voltage has risen unusuallyhigh in the early portion of the re-charge cycle. This is usually caused byplate sulfation. Once the battery rescue phase has succeeded in getting thebattery to accept power normal battery charging will begin.

Soft Start Phase:

Soft Start is used when the charger has detected a battery at a very lowinitial state of charge. Voltage and current are delivered at specified rates tohelp the battery to recover prior to e
