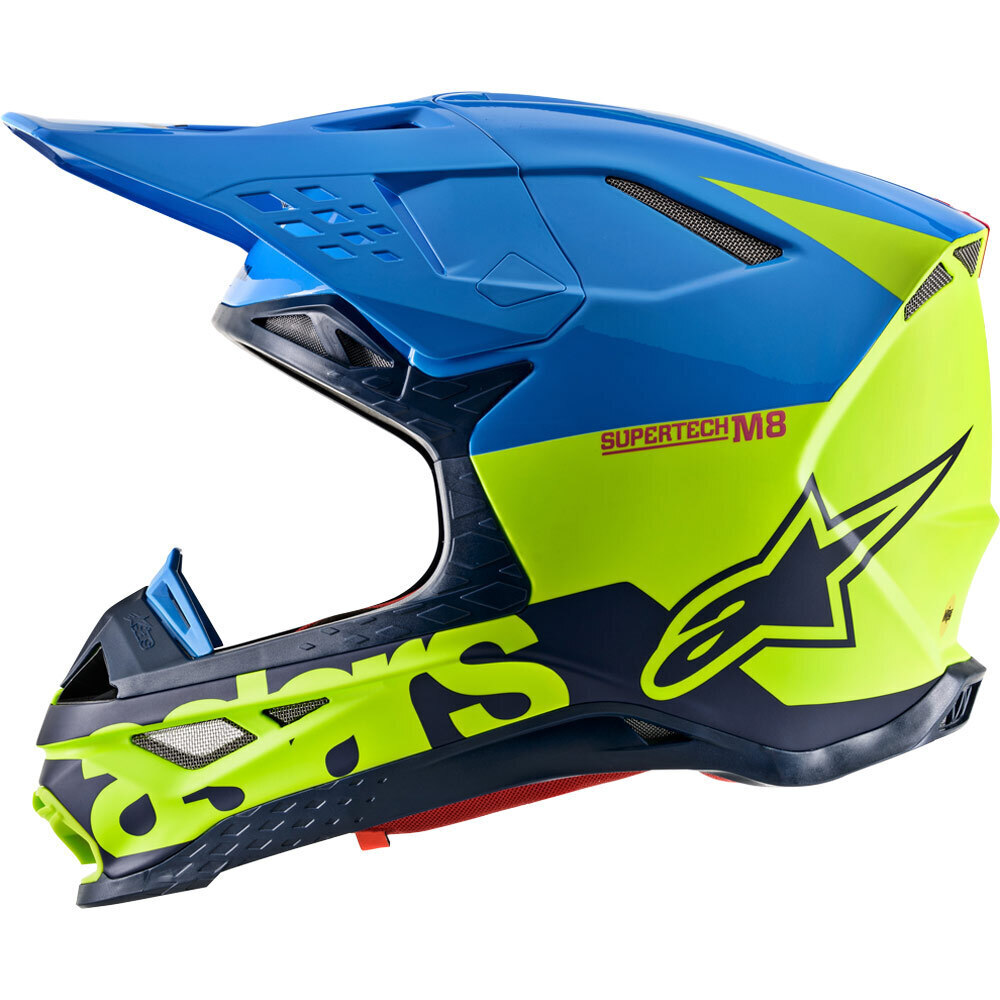

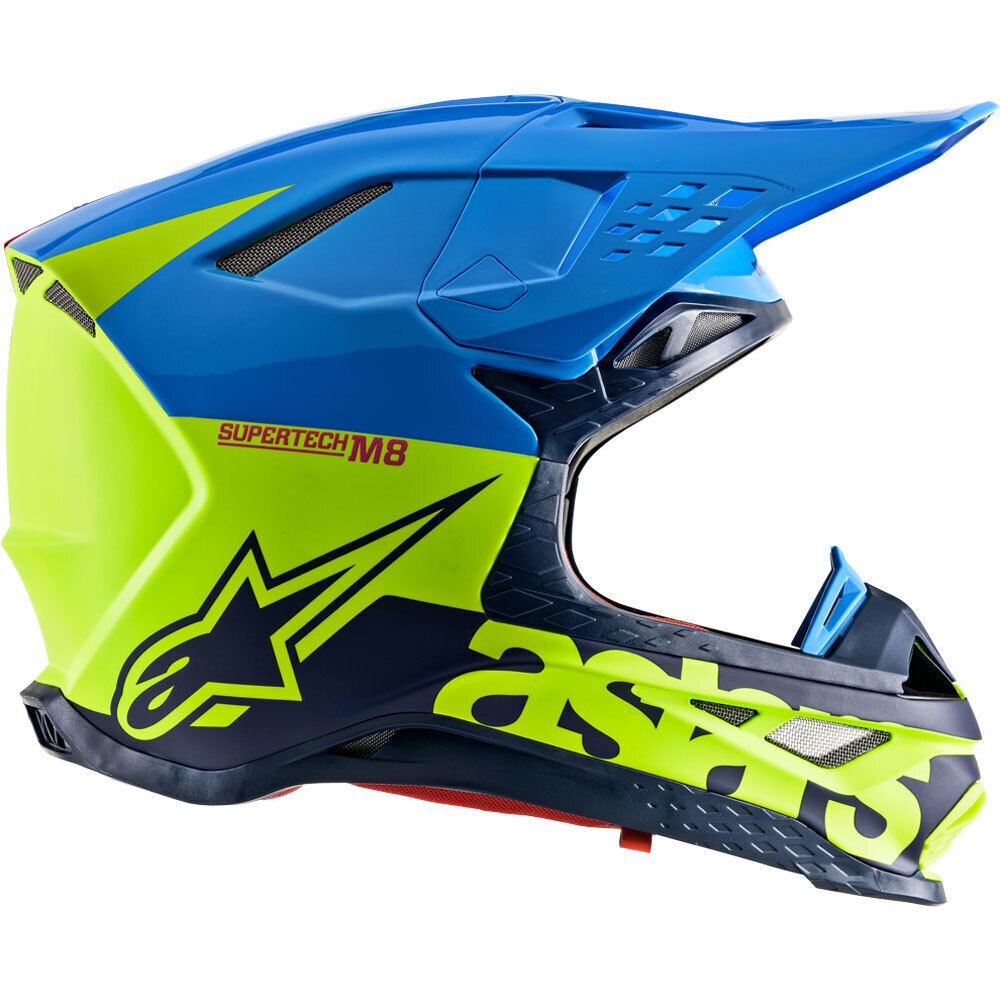

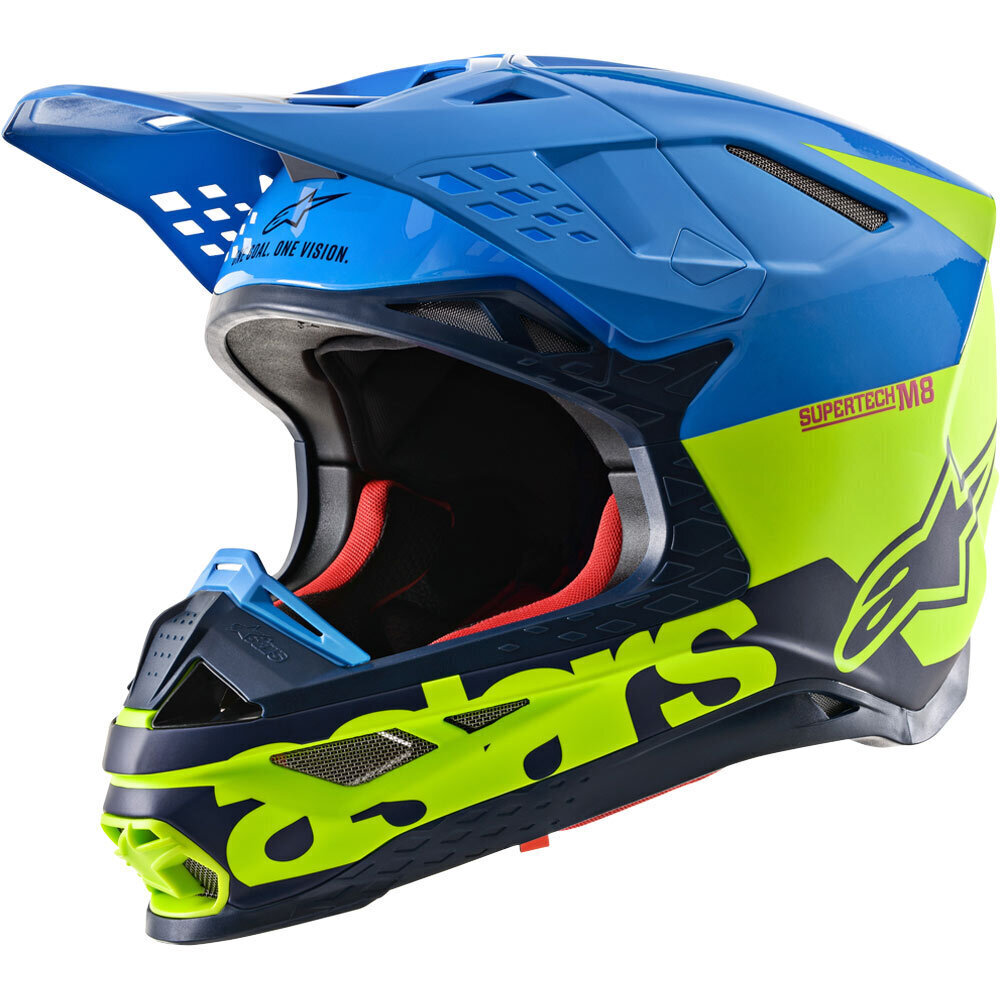

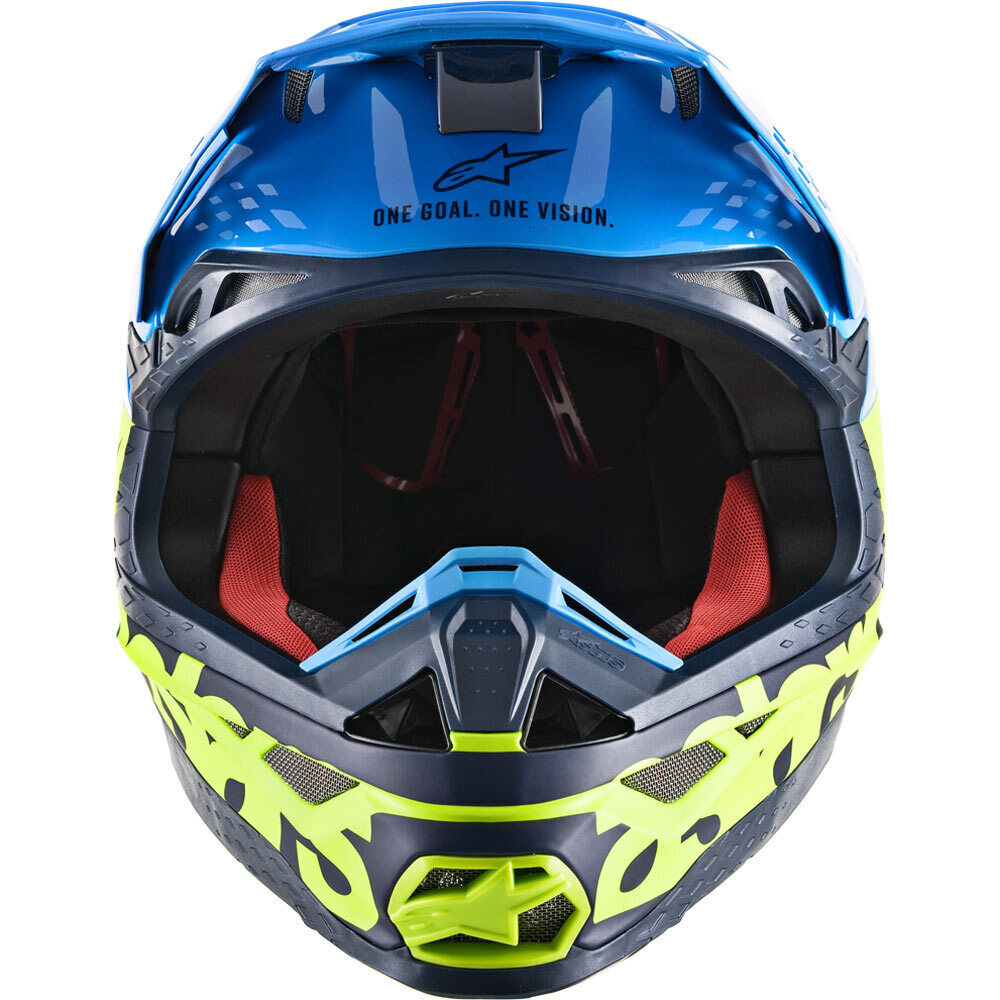

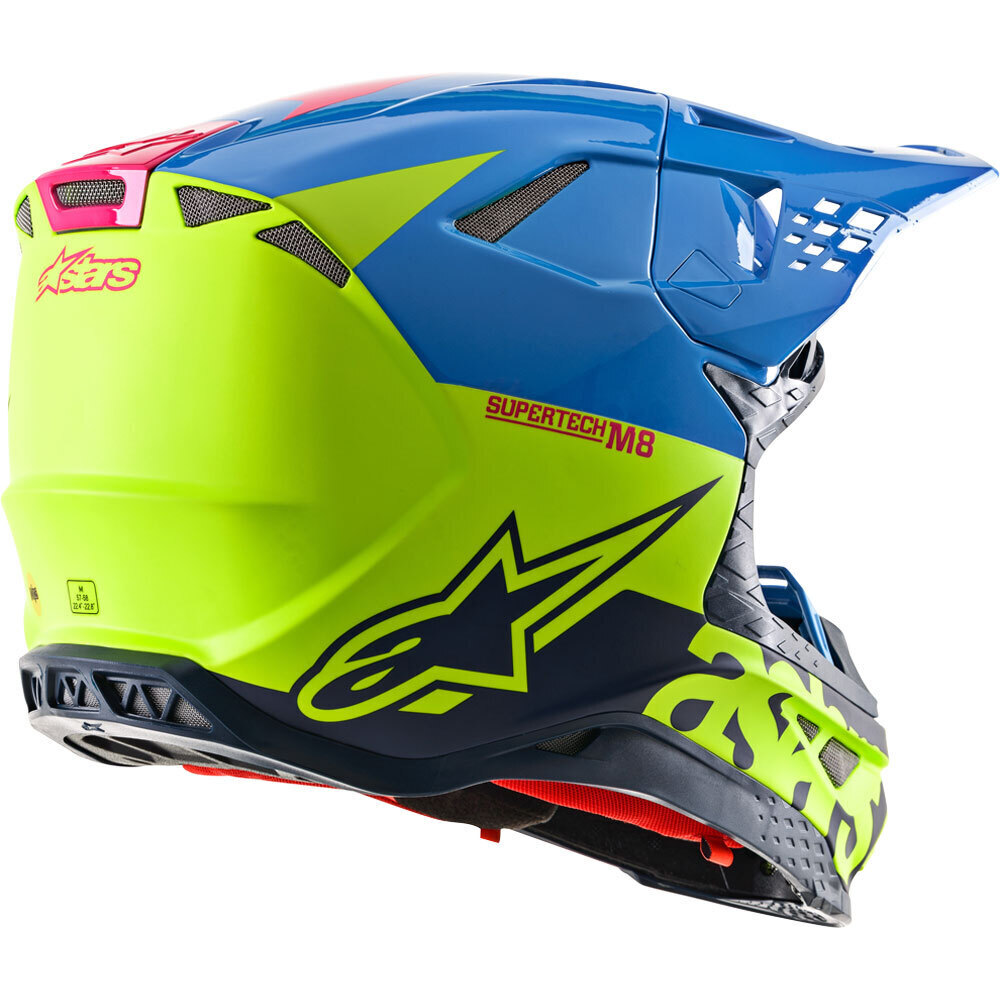

ALPINESTARS SUPERTECH S-M8 RADIUM HELMET AQUA FLURO YELLOW NAVY L

The S-M8 shell utilizes a highly advanced molding technology with a multi-composite combination for the greatest levels of protection while the smooth outer layer is streamlined and free of any external channels and features that might act as a load point in an impact, or compromise the overall integrity of the construction.

Another key feature is the S-M8 shell sizing solution; each helmet fit size has its own appropriate shell size to deliver the most anatomical solution for the wide variety of fit needs.

Other key design touches include the patented A-head fitting height and angle adjustment system, the patented visor release system, MIPS, emergency release system and a hydration system compatible lining design for easy and quick fitting and connection to a hydration system.

SAFETY FEATURES

• Shell construction utilises a highly advanced molding technology with a multi-composite combination: uni-directional carbon composite with aramid layer that gives significant radial strength around the shell, preventing compression but allowing controlled deflection for reducing transmitted impact energy, and providing critical penetration protection.
• This combination of layers is given an even greater performance with an epoxy resin bonding that offers the best possible strength and energy management; limited outer shell deflection means the energy spreads wider and is better absorbed by the EPS liner.
• The result of the unique shell lay-up process employed in the S-M8 construction results in extremely effective impact protection. With a fully equipped helmet testing facility, within Alpinestars Racing Development Center, an exhaustive impact research program has resulted in the Supertech M8 returning linear and oblique impact performance which far improves upon current helmet regulation standard limits. For direct, linear, impact by an average magnitude of 41% and for rotational acceleration, oblique, impact performance by an average of 48%.

CONSTRUCTION

• The Supertech M8 shell construction is optimised to offer best fit across the range of four size options. Shell sizes are manufactured in small, medium, large and extra-large to ensure that riders have the correct fit which not only improves comfort but, most importantly, the effectiveness of the helmet in an impact.
• The Supertech M8 liner construction combines with the shell to offer highly efficient impact energy management.
• Formed with a multi-density EPS polymer, the energy absorbing layer gives an inner helmet profile which soaks up impact forces dissipated over the outer shell at the point of an impact and provides a shape offering a close and comfortable fit.
• The energy absorption performance of the S-M8 is substantially improved by a four section construction that allows for specific densities of polymer to be prepared for different zones around the helmet lining. Not only is energy performance improved but also fit and comfort.
• Patented A-Head fitting height and angle adjustment system.
• The Supertech M8 incorportes a patented system to allow the helmet to be tuned exactly to the riders preference for the height and angle at which the helmet sits on the head. This unique technology allows for an ultra-specific set-up that can be adapted for the type of riding and the rider’s preference.
• With a micro-adjustable pad that is connected to the helmet inner shell, it is possible to raise or lower the helmet fit and also, to tilt the helmet forward, or backwards.
• Unique, patented, visor release system is another key attribute incorporated into the design of the Supertech M8.
• Visor release is a key part of overall protection performance in the helmet and a major influence on the distinctive, flush, design of the outer shell profile.
• Alpinestars has developed a unique visor release system which, while ensuring the mounting is held securely in place for riding over the most extreme terrain and any track conditions, provides exactly the right level of resistance to ensure the visor detatches from the helmet shell if it is subjected to a significant impact - no matter what the angle.
• The S-M8 visor release mechanism is conceived to avoid the inherent weaknesses in other types of anchoring systems. Maintaining shell integrity is vital for safety and with the possibility of multi-directional forces impacting on the visor, separation at the critical point of loading reduces potentially damaging leverage and rotational accelerations that refer injury to the rider’s neck and spine.
• Collarbone protection is an important design feature of the Supertech M8 helmet shell base profile.
• The base of the S-M8 has been sculpted to give a relief section, where the bottom profile is raised to clear the collarbone (Clavicle). Also, incorporated into the area of the base pad, where it sits over the rider’s collarbone, is an energy absorbtion pad; a more flexible compound rubber section which allows deflection when it contacts the Clavicle.
• The Supertech M8 chin-bar is formed with polypropylene which, by allowing for a degree of lateral deflection, further improves impact protection for the collarbones.
• Post-crash protection mechanisms are also a key feature of the Supertech M8 design, allowing rapid and safe intervention if the rider has suffered a major impact.

MIPS

• MIPS is incorporated into the Supertech M8 to reduce rotational motion energies that impact the helmet causing damaging gyration force to be transmitted to the brain.
• A low friction ‘slip’ layer is incorporated into the Supertech M8 helmet, between the comfort padding layer and the multi-density polymer energy absorption shell. When energy is impacted upon the helmet, causing a rotation force, the MIPS layer allows for movement of the inner absorbtion layer to damp and re-direct the energy before causing significant acceleration stress to the brain. This mitigates the causes of brain injuries, such as concussion.

EMERGENCY RELEASE SYSTEM

• The side cheek padding of the S-M8 can be extracted efficiently and safely, while the helmet is still on the rider’s head, to allow ease of removal by trackside support and medical staff.
• The Supertech M8 is also designed to allow a helmet ‘Eject’ inflation system to be fitted into the inside crown of the shell.
• Along with the ERS padding removal, ‘Eject’ allows for emergency removal of the helmet, without putting load on the rider’s spine.
• Chin-strap: Wider than certification requirement: 26 mm for comfort and produced with a woven poly yarn to give a soft ‘hand’ feel that connects securely with a double D-ring.

WEIGHT

• Weight is both a factor in riding performance and safety in a helmet and to ensure the S-M8 offers the ultimate in weight saving performance enhancement, the material selection, preparation and construction of the helmet has been rigorously analysed for weight to strength and energy absorption properties and a strict analysis of all the components used in the Supertech M8 finishing.
• The weight of S-M8 is 1300g for size Medium (ECE) - 1360g for size Medium (DOT)
• Ventilation is a key feature of the Supertech M8.
• Heat mapping tests have resulted in specifically designed ducting which produces a positive flow into the helmet over and around the rider’s head, improving comfort while riding and reducing the onset of heat stress in extreme conditions.
• The visor design of the S-M8 is also an integral part of the ventilation system as it is profiled to direct airflow, acting as a channel to concentrate and smooth the flow into the shell. The Supertech M8 liner design is formed to optimize airflow channelling around the rider.
